Working With Steel - Things You Should Know!


FOREWORD

   I get a surprising amount of folks writing in telling me they saw my pages, and plan on making some blades. Upon questioning, it turns out their workshop consists of a hacksaw and a file. Can you make a blade this way? Sure. Can you dig a new septic with a teaspoon? Sure... but you wouldn't want to. Get at least some rudimentary power tools or you're going to be at it for a VERY long time. I suggest you check out the Shop Talk page for some very cheap and rudimentary power tools that will get you started!


DESIGNING A BLADE

   First, you'll need to come up with a shape that you can live with. I do a lot of blade design in 2D CAD, Photoshop, and even in 3 dimensional renderings to see what a final product will look like, BUT... don't stop there! Cut the shape out from a piece of cardboard or even a thin piece of wood. Hold it in your hand to see how the shape feels, and remember that the steel version will be a good bit heavier. Hold it at the angles you'd need to hold it when using it for it's intended purpose. Pretend you're skinning, chopping or slicing and you may find you need to rethink your angles! You'd be surprised how many designs look really cool on a computer screen, but feel all wrong in the hand. This method helps to weed out the junk, and get a shape that is comfortable in the hand as well as functional for the intended purpose of the blade.


SHAPING A BLADE

   Okay, so you're ready to cut steel... or are you? If you're still thinking you're going to accomplish this with a hacksaw blade and an old Dremel tool, think again. This becomes more and more true as blade size increases. You may be able to accomplish a very small skinner or pocket blade with hand tools, but it's not going to be very pretty, and it's going to be a LOT of work for a little knife. If you're looking to make a bowie or a massive field blade, you're definitely going to need something more than sweat and tears to cut out the shape.

   In my Shop Talk page, I have shown some very cheap tools with which you can cut and grind steel. A simple angle grinder can make rough cuts and is relatively cheap. The rest of your shape can typically be formed and refined with a simple belt sander. For those who want to pursue the hobby and are willing to spend a few bucks, a belt grinder is THE key piece of equipment, and will set you back anywhere from five hundred to several thousand dollars. Some folks make their own belt grinders, but if you're reading this article, you're probably NOT one of those folks!


GRINDING A BLADE

Now we get to the tricky part. By "grinding" a blade, I'm referring not to forming the 2 dimensional shape, but to the 3rd dimension... the angles that form your cutting edge. This is (in my mind) the hardest knife making skill to master. To start, let's discuss some of the blade angle types.

FLAT GROUND BLADE

First, we have a simple "Flat Grind". This method involves a straight taper all the way to your cutting edge as shown in the animation below:

A flat grind requires that your belt traverse across a platen (a flat guide plate behind the belt). By carefully maintaining a very constant angle as you grind, you can produce a flat grind, but it tends to be quite difficult for a truly hand ground blade. This type of blade is most commonly produced using a milling machine to cut all the angles. If you have a milling machine, kudos to you, and have at it! Flat grinds are tough and can take abuse, yet are able to be sharpened to some very fine edges. They are similar to the convex grind in durability and shape.

HOLLOW GROUND BLADE

Next, we have a "Hollow Grind". This method is produced by a belt grinder with a rubber coated wheel (typically 8 to 10 inches diameter) over which the belt travels. The curvature of the wheel gives the curvature of the hollowed cutout area.

This type of blade grind is very common, but it has serious drawbacks when it comes to overall strength of the blade, especially when it comes to chopping and other extreme duties.

CONVEX GROUND BLADE

Next, we have a "Convex Grind". This method is the opposite of the Hollow Grind. It also requires a bit less grinding than the other methods as you are not removing quite as much material.

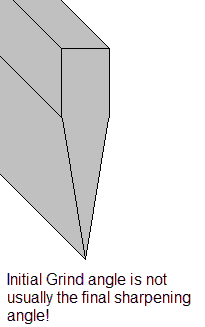

From an engineering standpoint, this is perhaps the toughest blade grind for extreme duty blades. As I mentioned, there is a lot more steel, and the chances of rolling the edge while chopping are almost nil. You don't want it too round or it will not take a sharp edge. You still need a relatively small angle at the edge for final sharpening. As you can see from the graphic, the convex grind curvature is very minor, and is pretty close to a flat grind.




SHARPENING A BLADE

Final sharpening is a critical process that takes the blade through finer and finer grinds, whether on mechanized equipment or hand lapped with whetstones. The goal is (typically) to maintain an exact angle throughout, and to grind and buff your edge smoother and smoother. This can produce a shaving sharp edge regardless of the type and grade of steel. The steel simply determines how long you can maintain this edge. Let's examine why...

HOW DOES A BLADE CUT?

Here is something that is little known and little understood by most people... ALL edges are saws. That's right... all cutting edges cut by sawing at the material they are cutting. If you want to get really technical, the cutting is done by micro-abrasion. The saw teeth, being harder than the material they are cutting, abrade the material piece by piece. The smoothest, sharpest scalpel, when viewed under a lot of magnification has microscopic "teeth" which present a very rough abrasive surface.

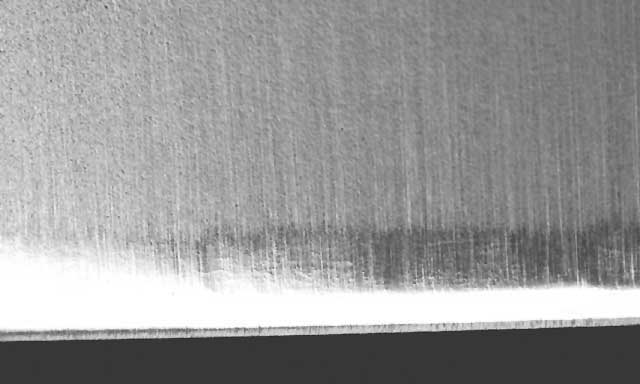

In these pictures, we will examine a razor sharp cutting edge under magnification. In the first picture (below) you can see the blade under relatively slight magnification. in particular, we can see the secondary bevel, which is the sharpened edge.

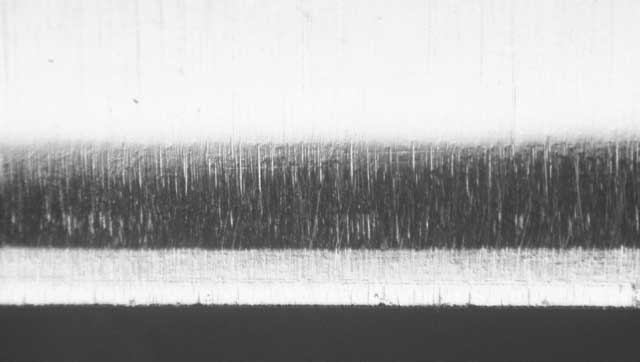

In this  picture, we see the sharpened edge under a lot more magnification. Already, it is clear that the sharpened edge is a good bit rougher than is apparent with the naked eye.

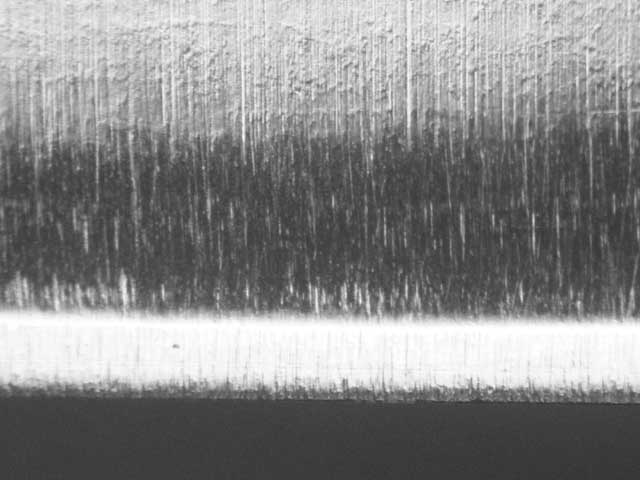

At very high magnification, we can now plainly see the grain structure of the steel. More importantly, we can also see our very abrasive saw edge. The "teeth" on this saw edge are actually made up of individual carbide grains within the steel's structure. Carbide is an extremely hard crystalline structure made of iron and carbon bound together. The hard carbide formations are embedded in softer steel which holds them in place. Repeated lapping and buffing of the edge removes the softer steel, and exposes the carbide grains.

An edge dulls when the carbide grains are pulled free of the softer surrounding metal. Think of it like sandpaper. The abrasive coating is an extremely hard substance such as aluminum oxide, but it is embedded in a softer glue which holds it to the flexible backing. As you use the sandpaper, the abrasive gets stripped from the softer glue little by little and eventually your sandpaper is ineffective and dull.




TO BE CONTINUED...
